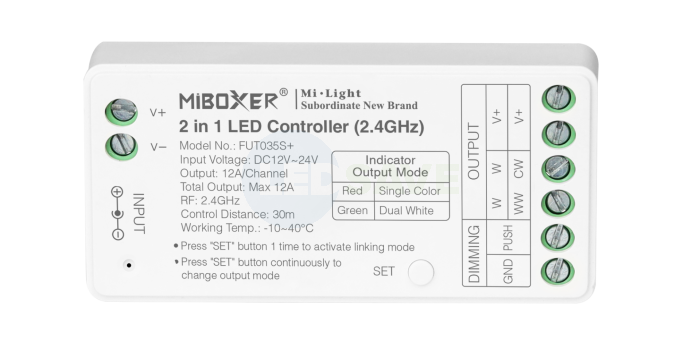

Single Colour/CCT LED Strip Light Controller / Receiver (FUT035S+)
Universal output Single Colour / CCT controller/receiver uses 2.4Ghz wireless technology and works with various transmitting devices and is the ideal soluition for controlling 12V/24V LED strip. The key benifit with this particular model is that it has an auto-transmitting and auto-synchronising function so all the recievers on the same 'button' or chanel will always be in sync which omits the need for any repeaters.
| FUT035S+ Controller Specification | |
| Type | Receiver / Controller |
| Working Voltage | DC12V~24V |
| Output Max | 6A/Channel |
| Total Output Max | 12A |
| Working Temperature | -10~40°C |
| RF | 2.4GHz |
| Max Controlling Distance | 30m |
| Output Connection | Common anode |
| Size (L x W x H) | 74.5mm x 36mm x 17mm |
| Certification | CE & RoHS |
| Guarantee | 3 years |
Compatable with:
-FUT006 (Single Colour 4 Zone Remote Controller)
-B1 (Single Colour Glass Panel Battery Operated Remote Controller)
Universal output Single Colour / CCT controller/receiver uses 2.4Ghz wireless technology and works with various transmitting devices and is the ideal soluition for controlling 12V/24V LED strip. The key benifit with this particular model is that it has an auto-transmitting and auto-synchronising function so all the recievers on the same 'button' or chanel will always be in sync which omits the need for any repeaters.
| FUT035S+ Controller Specification | |
| Type | Receiver / Controller |
| Working Voltage | DC12V~24V |
| Output Max | 6A/Channel |
| Total Output Max | 12A |
| Working Temperature | -10~40°C |
| RF | 2.4GHz |
| Max Controlling Distance | 30m |
| Output Connection | Common anode |
| Size (L x W x H) | 74.5mm x 36mm x 17mm |
| Certification | CE & RoHS |
| Guarantee | 3 years |
Compatable with:
-FUT006 (Single Colour 4 Zone Remote Controller)
-B1 (Single Colour Glass Panel Battery Operated Remote Controller)
| Channels | 4 |
|---|---|
| LED Strip Type | Single Colour/CCT |
| Product Type | LED Strip Receiver / Controller |
