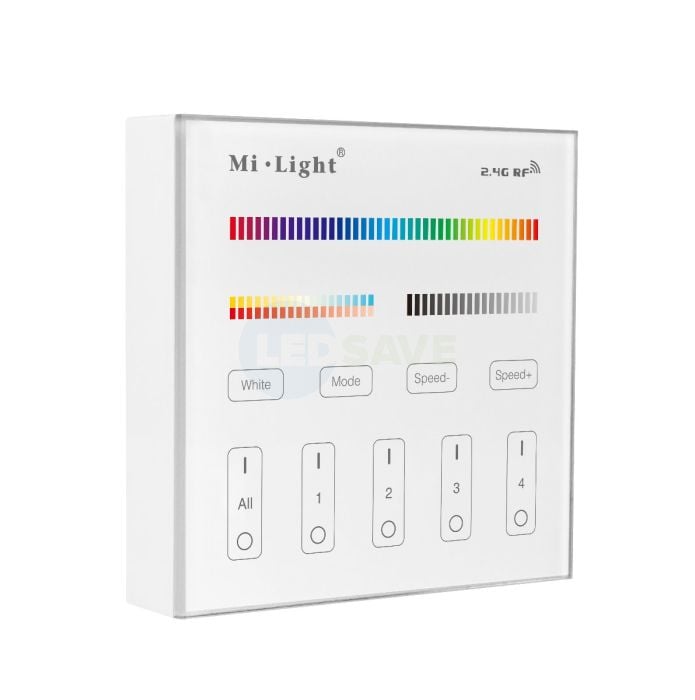

RGBW Glass Panel Battery Operated Remote Controller (B4)
Smart Panel Remote Controller is a newly developed remote controller. This Panel remote controller is designed with a delicate and fashionable tempered glass panel. It incorporates a high precision capacitive touch screen.
Model number: B4
Working Temperature: -20 -60℃
Input Voltage: 3V (2*AAA batteries)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Panel Size: 86*86mm
The Smart Panel Remote Controller is used for our RGBW products (see compatability list below). The controller can control LED lights up to four different zones, change the color, dim/brighten the lights and can also achieve warm white / cool white light temperatures.
Compatible with:
- FUT038 (4 Zone RGBW Receiver)
- FUT018 (GU10 RGBW Spotlight Bulb)
- FUTC02 (9W RGB+CCT Floodlight)
- FUTT04 (20W RGB+CCT Floodlight)
- FUTT03 (30W RGB+CCT Floodlight)
- FUTT02 (50w RGB+CCT Floodlight)
| Zones | 4 |
|---|---|
| LED Strip Type | RGBW |
| Product Type | LED Strip Remote |
Smart Panel Remote Controller is a newly developed remote controller. This Panel remote controller is designed with a delicate and fashionable tempered glass panel. It incorporates a high precision capacitive touch screen.
Model number: B4
Working Temperature: -20 -60℃
Input Voltage: 3V (2*AAA batteries)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Panel Size: 86*86mm
The Smart Panel Remote Controller is used for our RGBW products (see compatability list below). The controller can control LED lights up to four different zones, change the color, dim/brighten the lights and can also achieve warm white / cool white light temperatures.
Compatible with:
- FUT038 (4 Zone RGBW Receiver)
- FUT018 (GU10 RGBW Spotlight Bulb)
- FUTC02 (9W RGB+CCT Floodlight)
- FUTT04 (20W RGB+CCT Floodlight)
- FUTT03 (30W RGB+CCT Floodlight)
- FUTT02 (50w RGB+CCT Floodlight)
