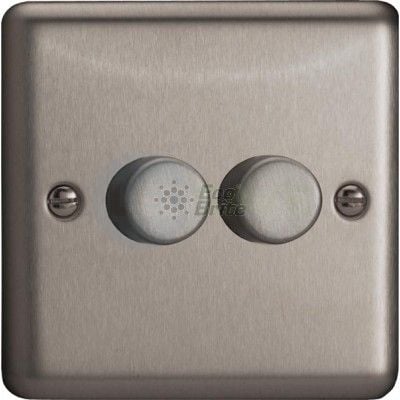

2 Gang 2 Way Brushed Steel Varilight V-Pro Dimmer
- LED compatible
- 2 Gang 2 way
- Max 10 LEDs / module
- 10W Minimum Load per Module
- 120W Maximum LED Load per Module
JSP252 Varilight V-Pro Series Brushed Steel 2 Gang, 1 or 2 Way Dimmer, 2 x 0-120W (1-10 LEDs / module)
The V-Pro series are programmable intelligent dimmers with a choice of dimming modes for wider compatibility. All V-Pro dimmers offer superior dimming technology to deliver the best possible dimming performance for a given load. V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change between three driving modes and adjust the minimum brightness to suit your installation.
This dimmer is designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W (max. 10 LEDs)
V-Pro series dimmers are designed for use with LEDs and work with the majority of dimmable LEDs on the market. They are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting.
These Dimmers can be used in 2-way circuits (where one lighting circuit is controlled from two locations). In order to achieve 2-way switching, they must be paired with a standard 2-way switch in the other location. 3-way switching can also be achieved by adding an intermediate switch into the circuit. Please note, if total dimming is preferred from all switched locations, in a 2 or 3-way circuit then choose the IR range (if dimming LEDs) in conjunction with Slave Dimmers. The V-Pro Dimmers have a soft start feature and intelligent overload protection.
-Fit a 25mm Deep Wall Box
-Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes. With the V-Pro series, you are, able to adjust the minimum brightness setting.
JSP252 Varilight V-Pro Series Brushed Steel 2 Gang, 1 or 2 Way Dimmer, 2 x 0-120W (1-10 LEDs / module)
The V-Pro series are programmable intelligent dimmers with a choice of dimming modes for wider compatibility. All V-Pro dimmers offer superior dimming technology to deliver the best possible dimming performance for a given load. V-Pro dimmers have a push-on/push-off switch action with rotary dimming. You can change between three driving modes and adjust the minimum brightness to suit your installation.
This dimmer is designed to control LED lighting loads requiring trailing-edge or leading-edge control with options from 0W-120W (max. 10 LEDs)
V-Pro series dimmers are designed for use with LEDs and work with the majority of dimmable LEDs on the market. They are also suitable for halogen and incandescent lighting, most dimmable electronic transformers and with no minimum load, are suitable for dimmable low energy lighting.
These Dimmers can be used in 2-way circuits (where one lighting circuit is controlled from two locations). In order to achieve 2-way switching, they must be paired with a standard 2-way switch in the other location. 3-way switching can also be achieved by adding an intermediate switch into the circuit. Please note, if total dimming is preferred from all switched locations, in a 2 or 3-way circuit then choose the IR range (if dimming LEDs) in conjunction with Slave Dimmers. The V-Pro Dimmers have a soft start feature and intelligent overload protection.
-Fit a 25mm Deep Wall Box
-Trailing and Leading Edge Dimmer, please refer to instructions provided with the dimmer, which explains all 3 dimming modes. With the V-Pro series, you are, able to adjust the minimum brightness setting.
